Explore the Cardanit Simulation interface

Get to know the Cardanit BPS interface and its key elements. Understanding how to navigate this space will help you make the most of its features and set yourself up for success.

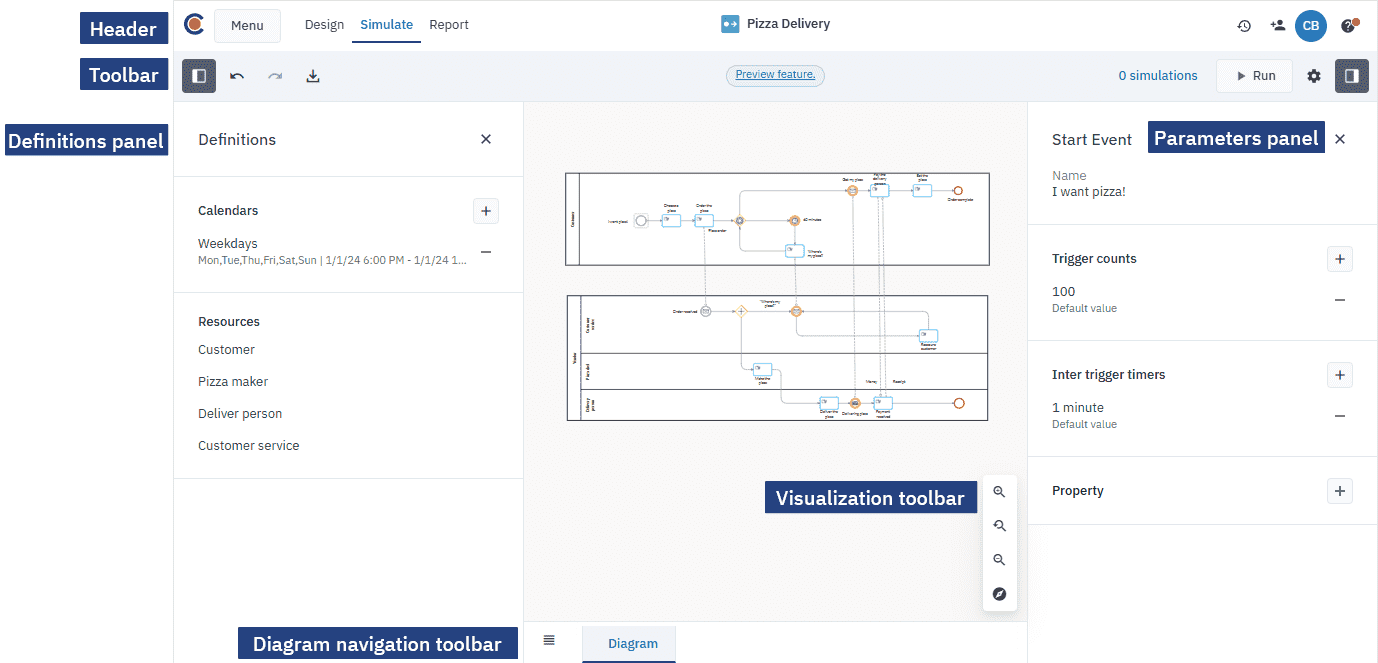

The Simulate environment showing the location of the header, main toolbar, definitions panel, parameters panel, view toolbar and diagram tab bar.

The header is where you’ll find everything you need to manage your project and get around the platform. It’s your quick access point to key features.

  • Cardanit logo: Click the logo to return to the Home page.

  • Menu: Use this to return to My Files, rename your project and hide or show collaborator cursors.

  • Tab menu: Navigate between the Design, Simulate and Report environments.

  • Project name: Always keep an eye on which project you’re working on.

  • Version history tool: Create and explore different versions of your project.

  • Share: See who has access to your project and share it with others.

  • Your avatar: Edit your account details.

  • Help: Access information about Cardanit, view documentation, submit feedback, contact support, or book a demo.

Main toolbar

The main toolbar provides essential tools for setting up your simulation and adjusting settings during the process.

Tool Description
Diagram dropdown list Switch between diagrams in your project.
Undo and redo actions.
Download the BPMN model containing BPSim parameters.
Simulations See how many simulations you’ve run. Click to open the full list of simulations.
Run Run the simulation.
Define the base unit for time and cost parameters.

Definitions panel

This is where you can set the available resources, manage calendars, and define both fixed and unit costs for each resource. These parameters aren’t directly linked to BPMN elements, but they are essential for configuring key aspects that influence your process.

To open the Definitions panel, click .

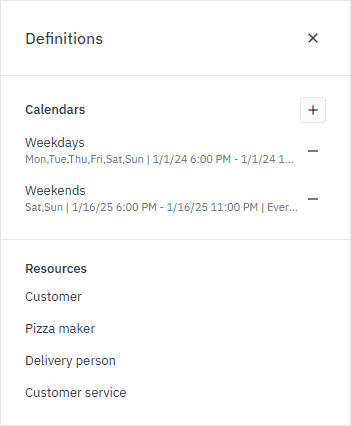

The definitions panel.

Parameters panel

Here, you can configure parameter values for the BPMN elements in the model such as processing times, costs, and resource needs. You can also associate calendars to these parameters for more accuracy.

To open the Parameters panel, click .

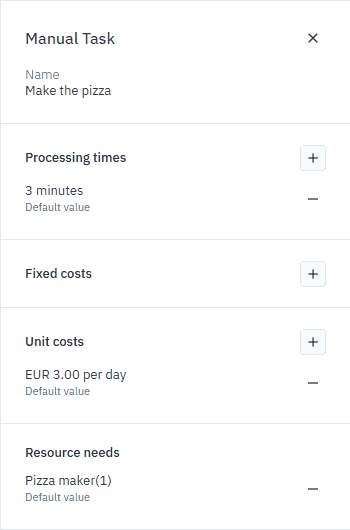

The parameters panel.

View toolbar

The view toolbar allows you to adjust the diagram view and open the mini-map to easily navigate large, complex diagrams.

Action Description
Zoom in on the diagram.
Zoom out of the diagram.
Reset the diagram to the default size.
Open the mini-map to view and navigate the entire diagram.

Diagram tab bar

If your process includes multiple diagrams, this is where you can quickly switch between them. Click to see a list of available diagrams and select the one you need.
